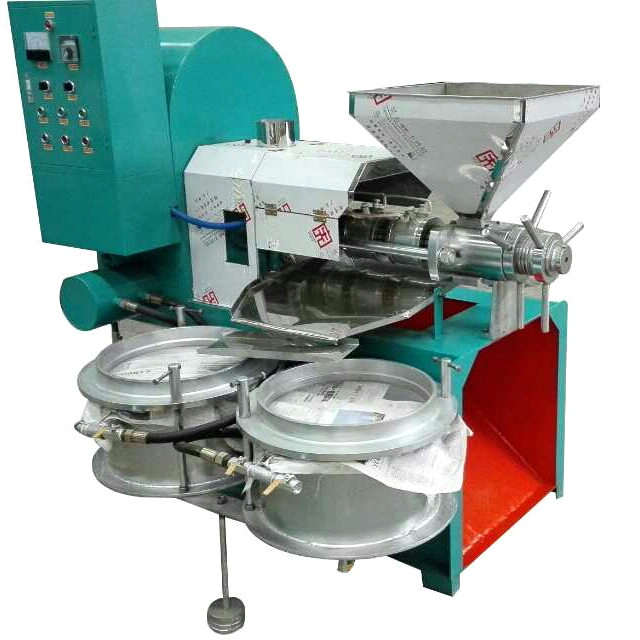

Solar Energy Oil Press

description

Source:	380V (electric supply, solar energy)
Power of engine:	7.5KW
Heating power:	0.9kW
Oil processing capacity:	3.5T/D
Size:	215012001820(mm)
Applicable objects:	peanut, rapeseed, soybean, etc.

Detailed

This series of oil press products is a complete system device that can be used to oil manufacture from sesame, peanut, soybean, rapeseed, oil sunflower, flaxseed and other oil plants in the power shortage areas. The system is powered by solar photovoltaic panels and compatible with other power supply inputs. Through intelligent management of the CCS system, the oil press runs stably, saves energy and power, and meets the needs of oil manufacture in the areas without electricity or lack of electricity.

Main technical parameters:

Spiral diameter	Press cage diameter	Revolution rate of screw	Matching power	Vacuum pump	Heater	Processing quantity	Total weight	Outline dimension
φ 80mm	φ 82mm	63r/min	5.5kw	0.75kw	200w	60~100Kg/h	600Kg	16501600900

Oil pressing performance:

Item	Sesame	peanut	rapeseed	oil sunflower seed	soybean	cottonseed	walnut	flax	camellia seed
Oil yield (%)	45~55	40~50	30~45	32~45	12~18	11~25	42~52	32~38	26~38
cake thickness (mm)	1.0~1.5	0.5~2.0	0.8~1.8	1.0~1.5	0.8~1.5	1.0~2.0	0.8~1.5	1.0~1.8	1.0~2.0
dry cake residue rate (%)	≤6	≤6	≤6	≤6	≤6	≤6	≤6	≤6	≤6

Features of CCS solar energy oil press:

1. It can be adjusted to squeeze according to the different requirements of oil plants. It is not affected by season, climate and so on. And it can squeeze all the year round.

2. Not only the oil yield is high, but also the quality of pressed oil is clear and pure, and good market efficiency can be obtained.

3. The oil press adopts intelligent technology to realize the function of electronic automatic temperature control and the energy saving efficiency is high.

4. DC brushless motor is used to drive the oil press. DC brushless motor has many advantages compared with three-phase AC motor, such as long service life, comprehensive efficiency more than 20% higher than AC scheme of DC inversion, adjustable speed, strong overload ability, good start-up performance, rotating blockage without burning motor and so on.

5. The matching CCS system can intelligently control the operation of equipment, automatically adjust the equipment operating load according to the changes of solar energy in real time, maximally improve productivity, and make the equipment run smoothly, without stuffing or blocking.

6. There are three kinds of products for CCS series oil presses, including hydraulic multi-function oil press system, mechatronics oil press system and household oil press.

7. Realizing the optional power supply of electric supply and solar energy, the reliance on the electric supply and the cost of electricity consumption are greatly reduced.
